Innodisk Releases New DDR5 and LPDDR5X CAMM2 Memory Modules

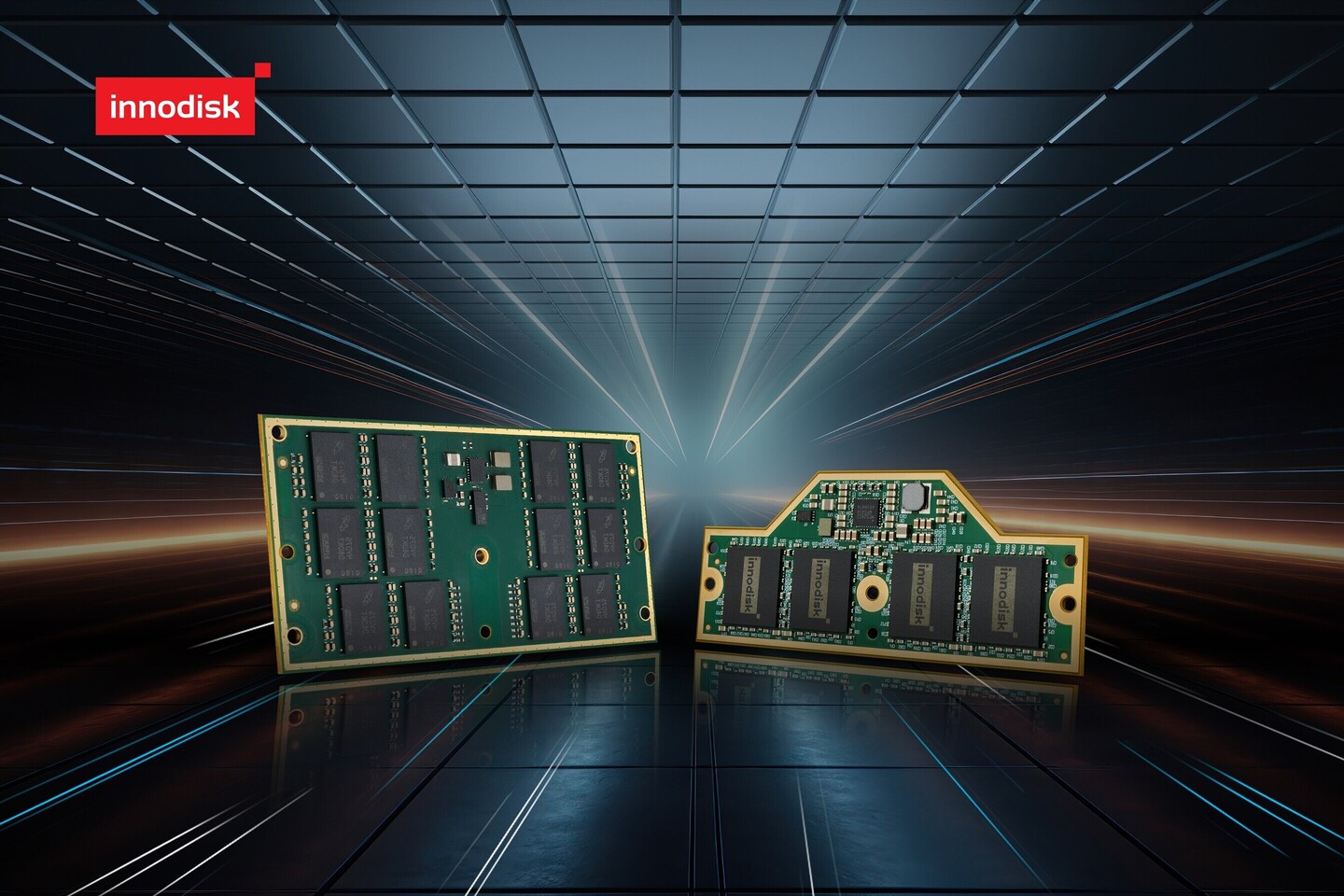

Innodisk, a leading provider of industrial-grade memory solutions, has officially launched its latest DDR5 CAMM2 and LPDDR5X CAMM2 (LPCAMM2) memory modules. These modules offer blazing speeds of up to 6400 MT/s and 8533 MT/s, respectively, while taking up 60% less space. This release marks a significant advancement into the rugged device and compact system market for Innodisk.
The new CAMM2 series from Innodisk features a unique design that consolidates dual channels on a single module. This design effectively combines the capacity and performance of two separate SODIMMs into a compact footprint. Despite handling a greater signal load, the modules have a simplified PCB routing that enhances signal integrity, resulting in cleaner and more reliable data transmission. Additionally, the new motherboard design, when paired with the CAMM2 module, eliminates signal stubs caused by unused DIMM slots in traditional stacked configurations. The flat, board-hugging installation improves thermal contact and frees up space for customized cooling solutions.

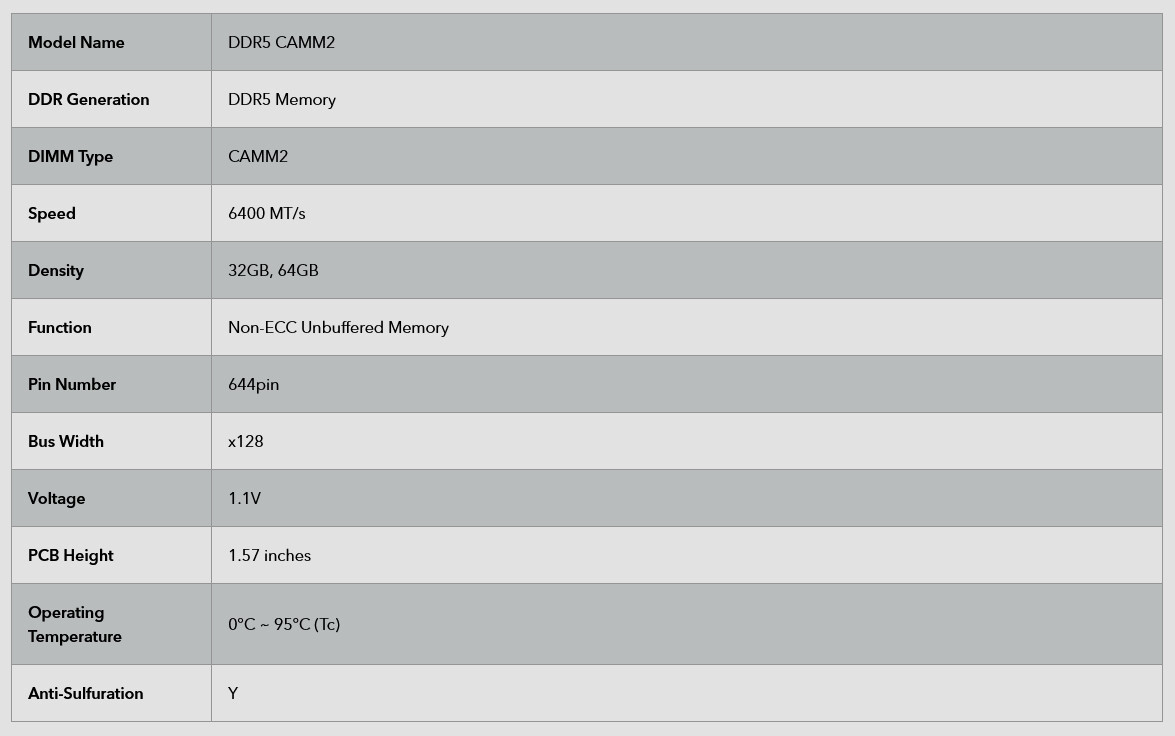

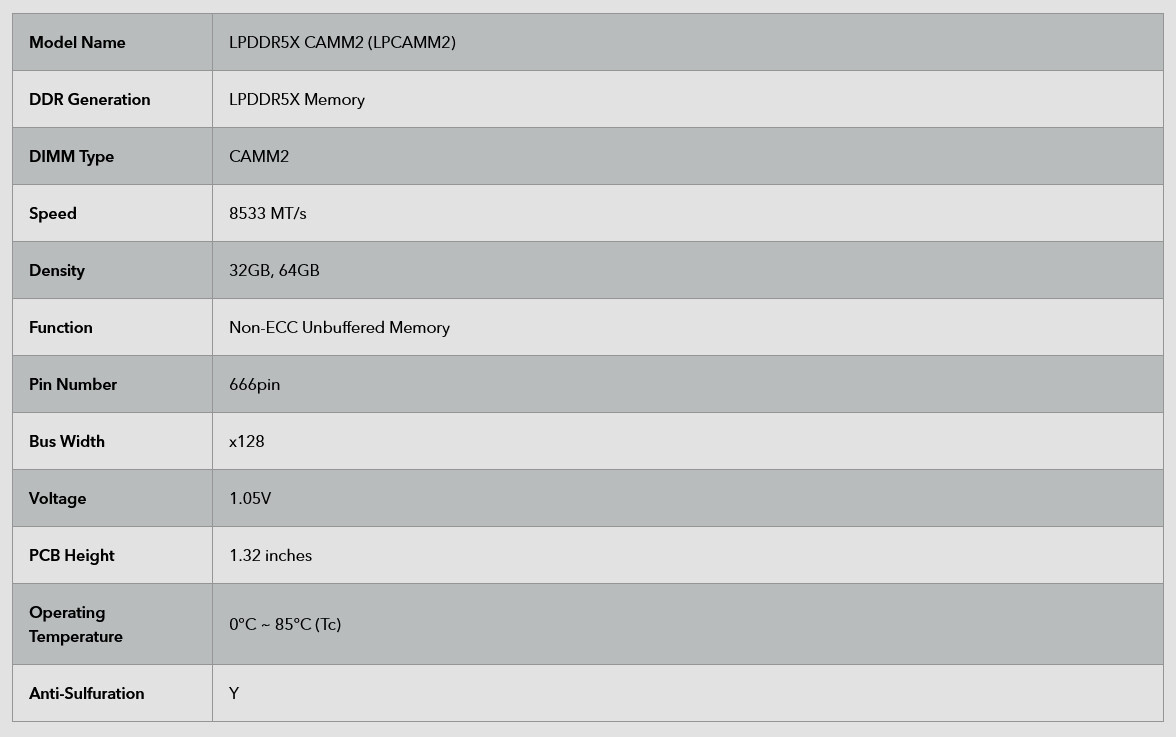

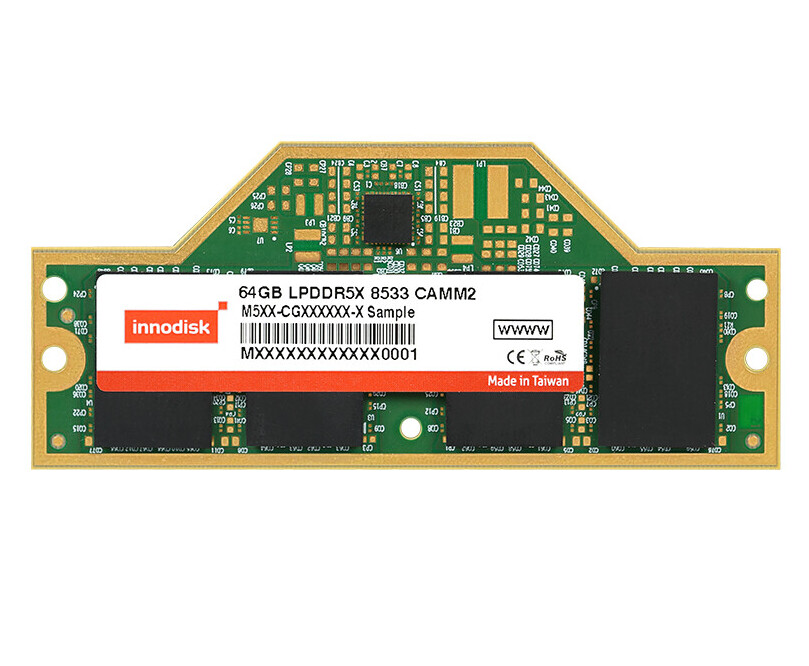

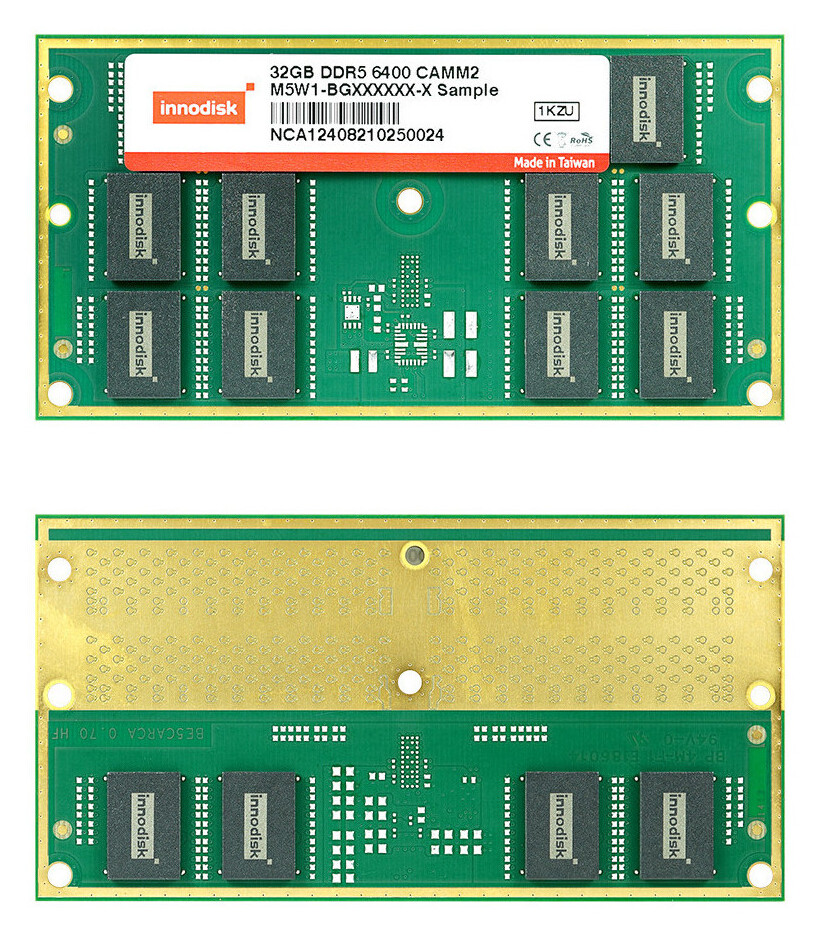

Powered by DDR5, Innodisk's CAMM2 delivers speeds of up to 6400 MT/s. The LPDDR5X version further boosts performance to 8533 MT/s, maintains the same 128-bit data width, and lowers operating voltage to 1.05 V. This advanced design improves power efficiency, reduces energy consumption, and extends system working hours. These features cater to the needs of Compact PCI, mini PC, rugged laptops, and fanless systems that require high performance in compact, power-efficient designs.
Both CAMM2 and LPCAMM2 modules adopt a screw-lock design for easy maintenance and modular scalability. This design not only secures mechanical attachment but also improves vibration resistance and mechanical durability, making them suitable for rugged environments such as aerospace and mission-critical applications. Additionally, LPCAMM2's modular LPDDR5X architecture eliminates the need for full motherboard replacements, addressing the limitations of soldered memory designs.
As a pioneer in bringing CAMM2 technologies to the industrial sector for embedded applications, Innodisk is committed to enabling industrial AI at the edge. To support the adoption of the new form factor, Innodisk offers comprehensive after-sales service and flexible customization options. A stable and long-term supply ensures that customers can integrate CAMM2 solutions with confidence.
The Innodisk LPDDR5X and DDR5 CAMM2 modules will be available for sampling in Q4 2025.
