Introducing the Shuttle XPC Barebone SB860R8: Redefining Compact Desktop Performance

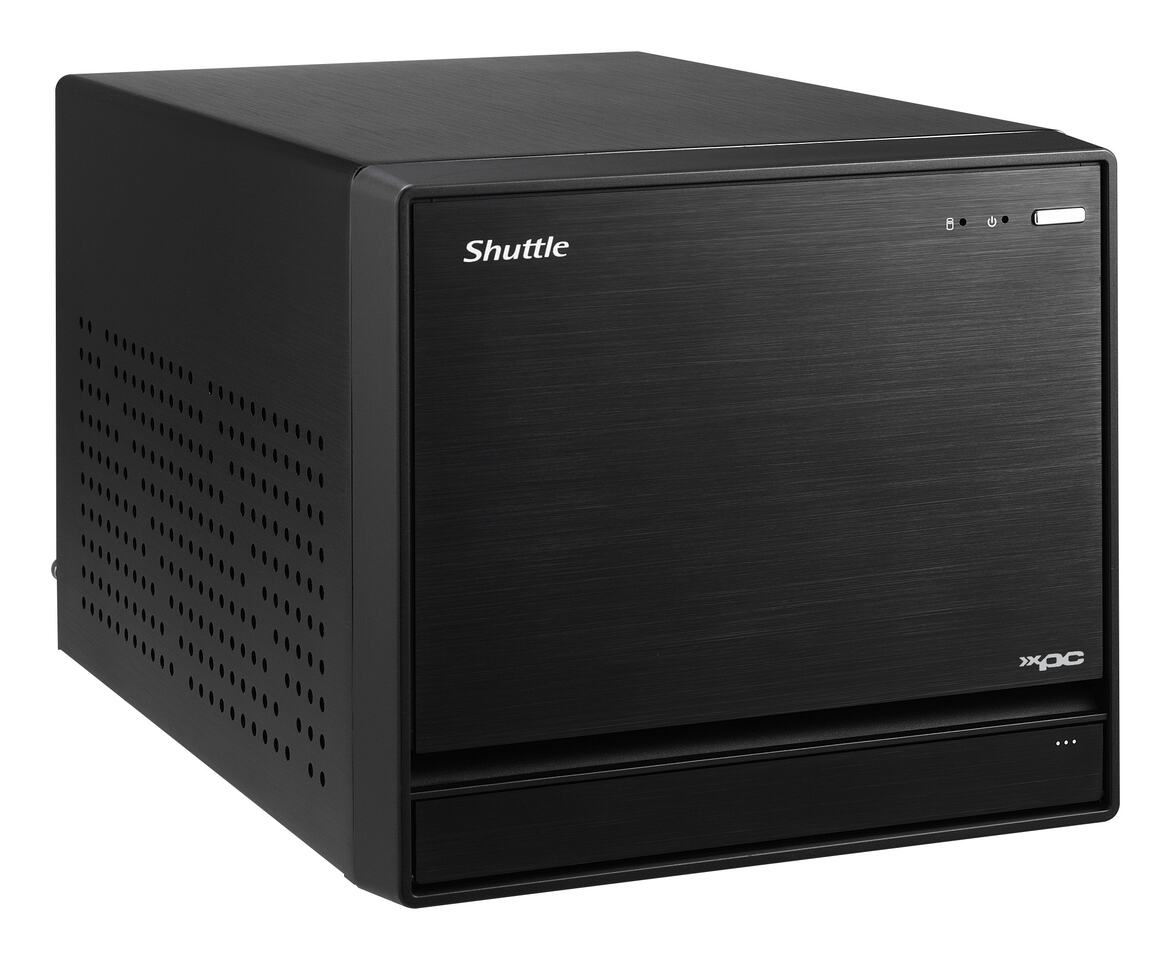

The Shuttle XPC Barebone SB860R8 marks a new era in compact desktop computing, combining advanced hardware with a renowned 14-liter cube design. Engineered for the latest Intel Core Ultra 200 desktop processors (Arrow Lake-S), this flagship model delivers exceptional performance, scalability, and reliability in a remarkably small footprint. Whether for demanding workstation tasks, IT professionals, system integrators, or as a robust mini-server, the SB860R8 sets a new standard for compact PCs.
Next-Generation Platform with Intel Core Ultra 200
At the core of the SB860R8 is support for Intel’s cutting-edge Core Ultra 200 Series processors (9/7/5), utilizing the LGA1851 socket and offering a base TDP of up to 125 watts. This modern architecture ensures outstanding energy efficiency without compromising on processing power, making it ideal for intensive multitasking, virtualization, and professional workloads.
The system features four DDR5 memory slots, accommodating up to 192 GB of RAM (4 x 48 GB). This impressive memory capacity allows the SB860R8 to rival traditional tower systems, providing seamless performance for data-heavy applications and multitasking environments.
Exceptional Storage Flexibility in a Compact Chassis

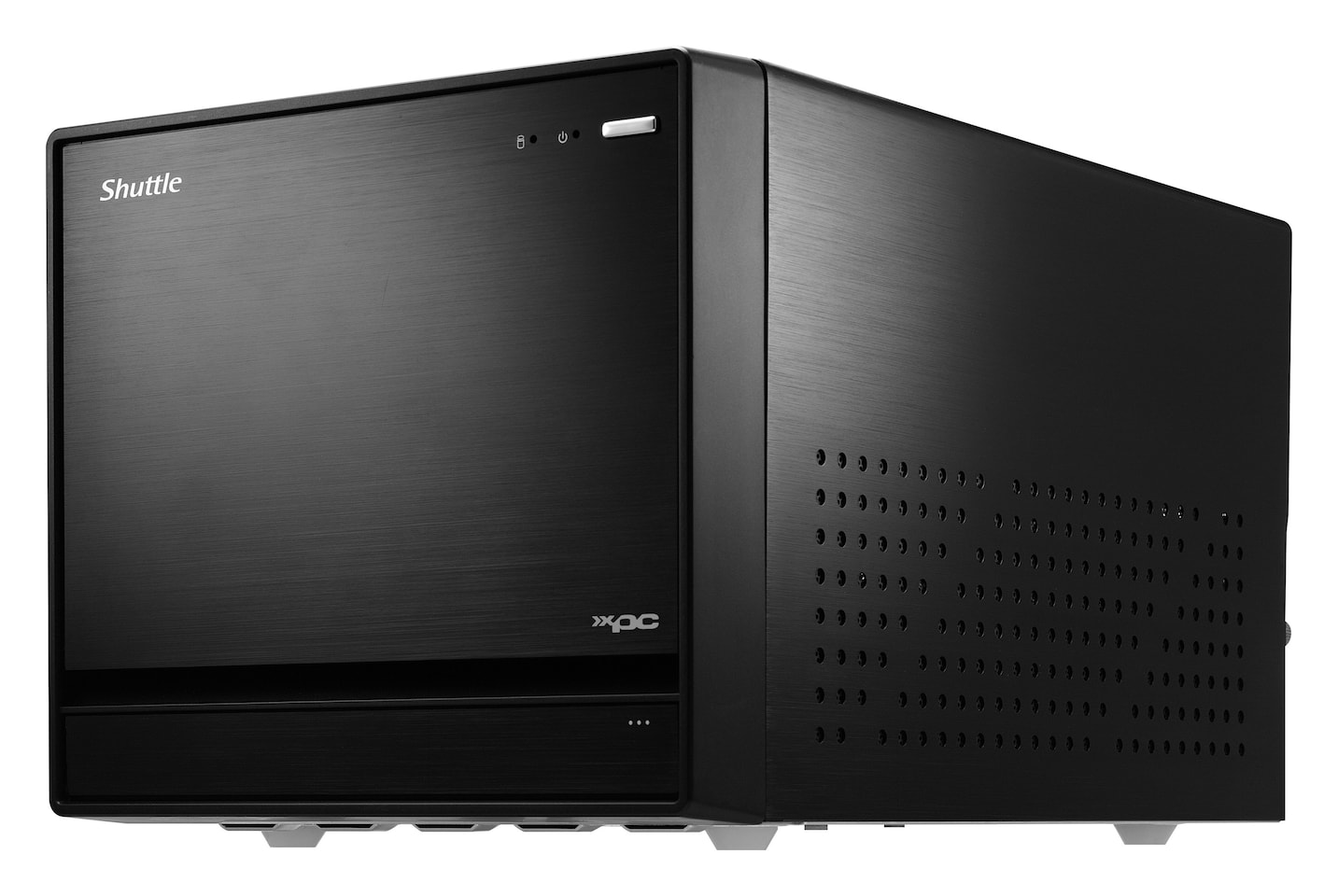

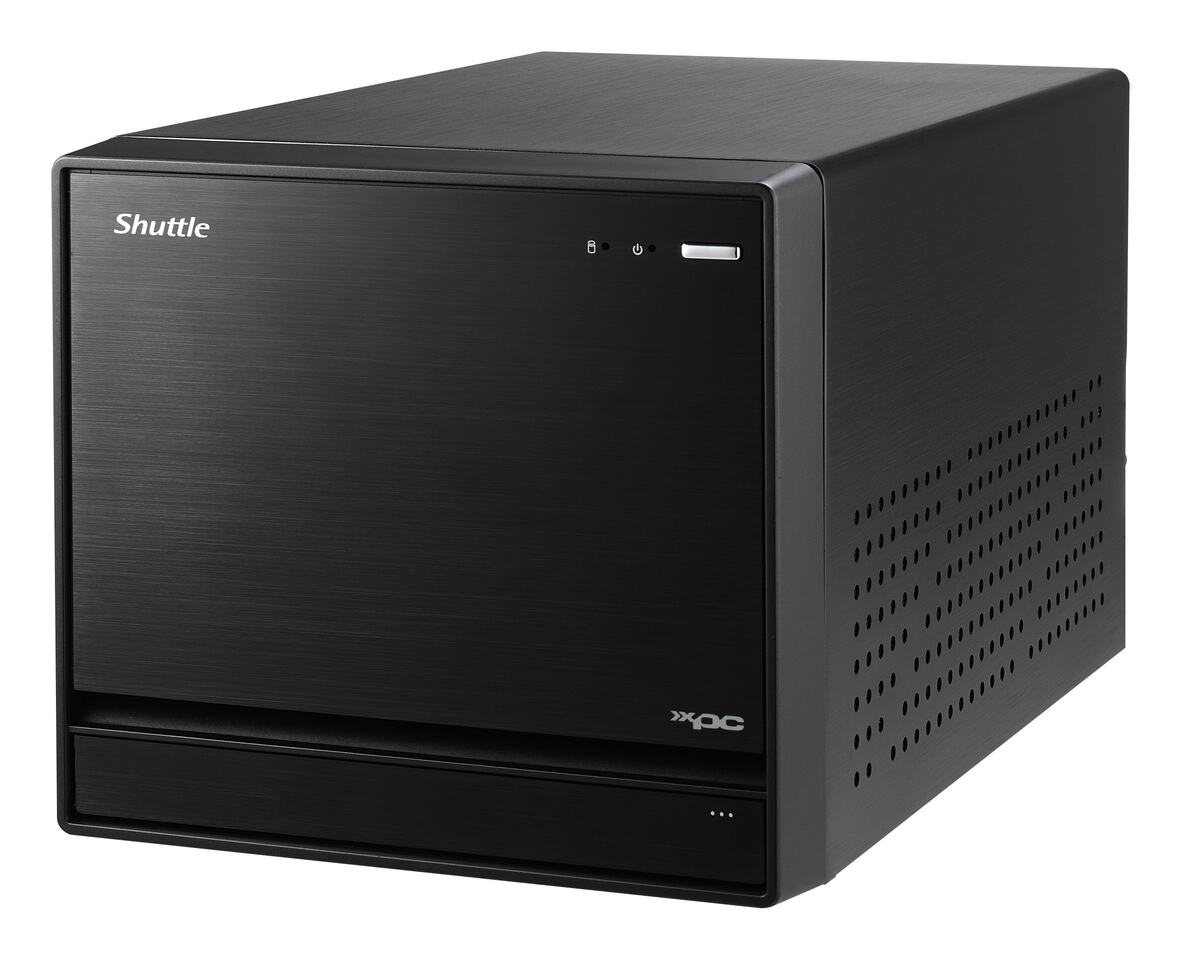

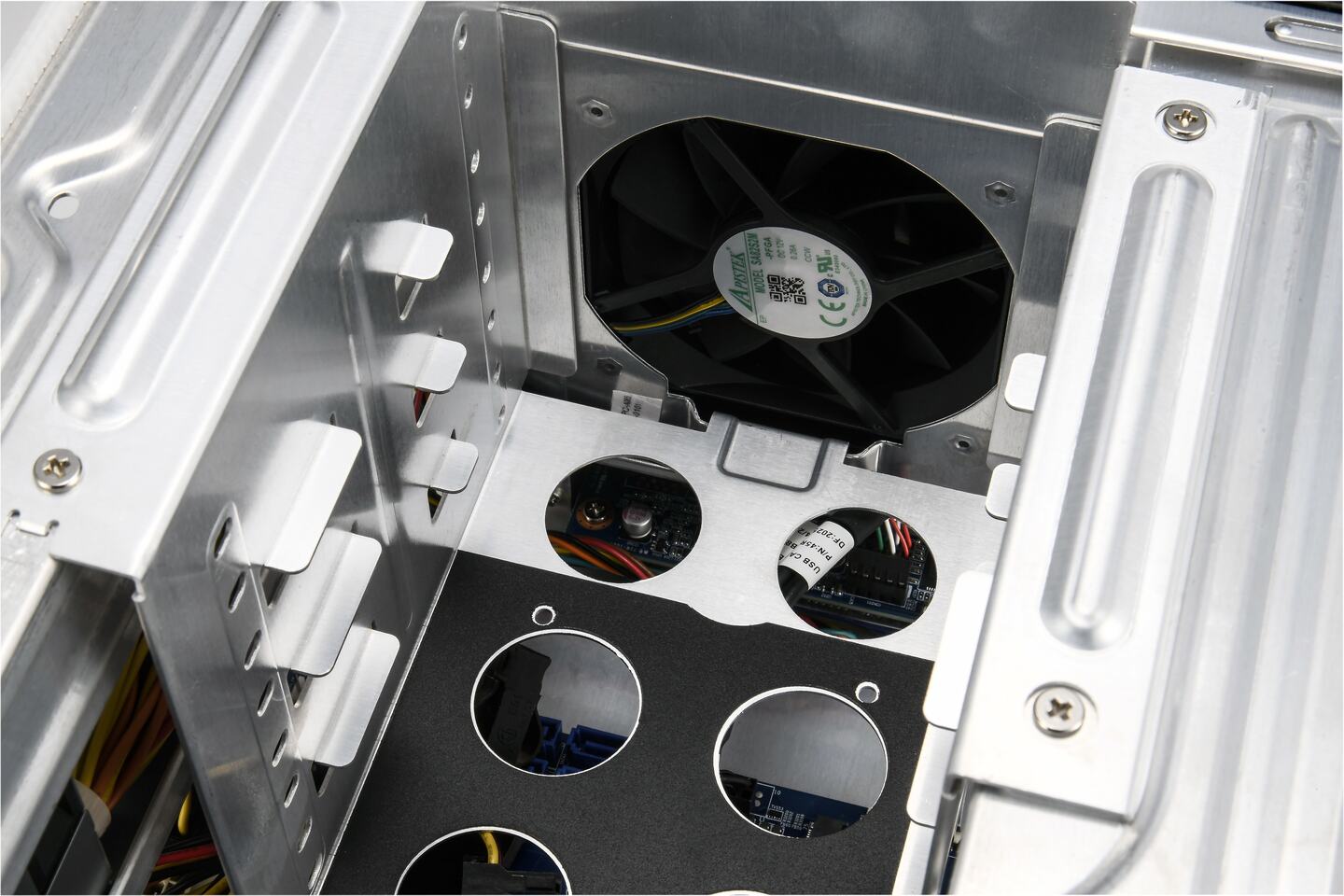

Despite its compact dimensions (33.2 x 21.5 x 19.0 cm), the SB860R8 offers extensive storage options. The robust brushed aluminium chassis supports up to four internal 3.5-inch SATA hard drives with RAID 0/1/5/10 configurations, making it an excellent choice for high-performance NAS or mini-server deployments.
For ultra-fast storage, the motherboard includes two M.2-2280 slots for NVMe SSDs, with one slot supporting the latest PCIe Gen 5.0 x4 standard for maximum data transfer speeds. An additional M.2 2230 slot is available for easy Wi-Fi module upgrades, ensuring future-proof connectivity.
Comprehensive Connectivity and Expansion Options
The SB860R8 is designed to meet the needs of professional and enterprise environments with a wide array of modern interfaces:

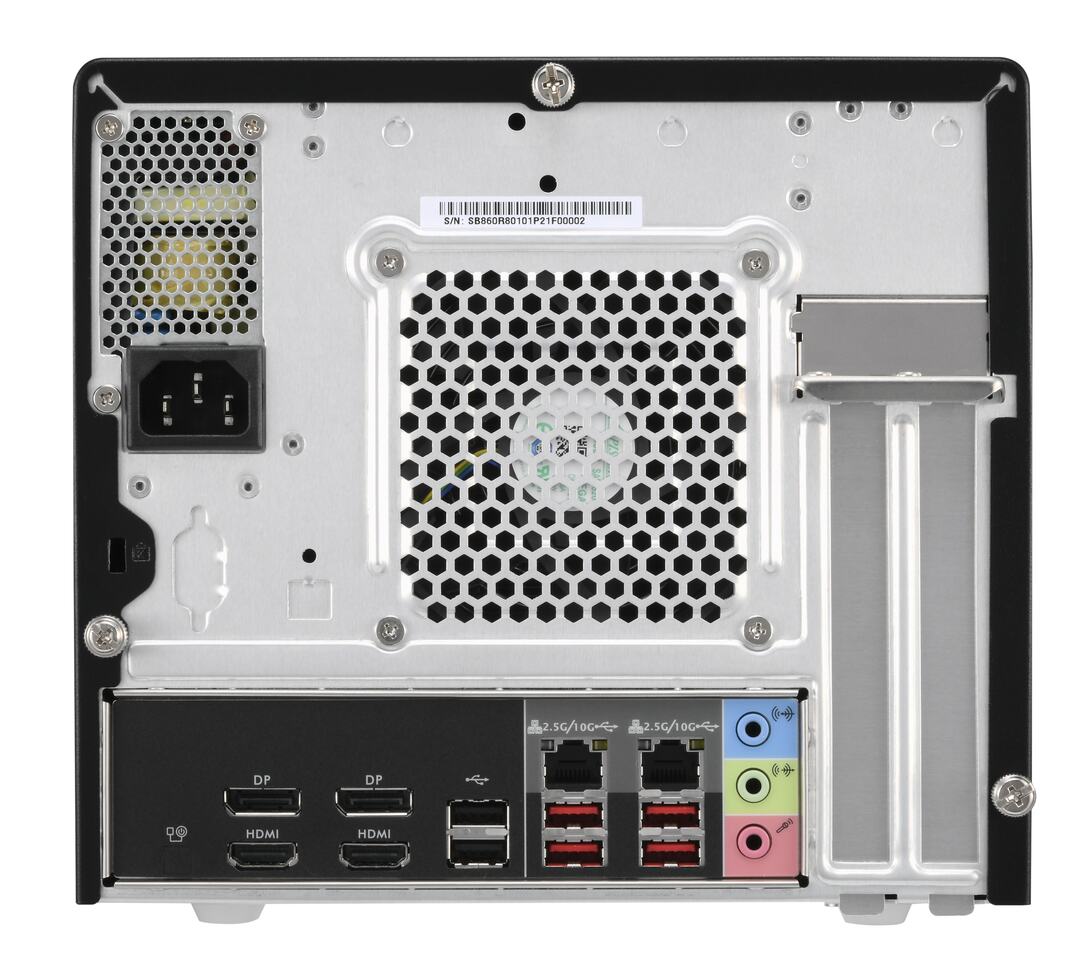

- Dual 2.5G Networking: Two RJ45 ports powered by Intel i226-LM controllers provide robust network security, failover support, and high-speed teaming capabilities.
- Multi-Display Support: Integrated graphics enable simultaneous operation of up to four UHD displays via two HDMI ports (including HDMI 2.1 with 8K support) and two DisplayPort 1.4a ports.
- High-End Graphics Card Support: A PCI Express x16 Gen 5 slot accommodates modern dual-slot graphics cards, while an additional PCIe x4 Gen 4 slot allows for further expansion.

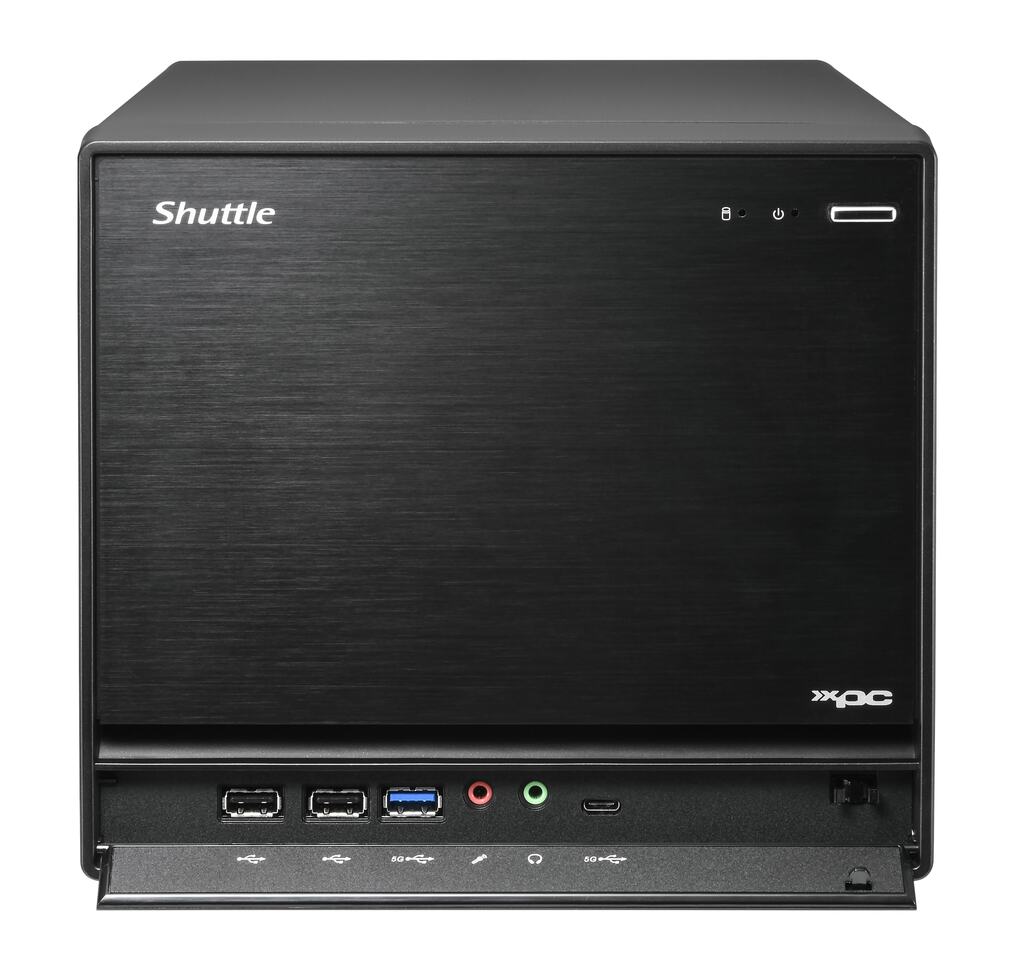

- Versatile USB Connectivity: Ten USB ports, including high-speed USB 3.2 Gen 2 ports on both the front and rear panels, offer maximum flexibility for peripherals and external devices.
Efficient Cooling and Reliable Power Delivery

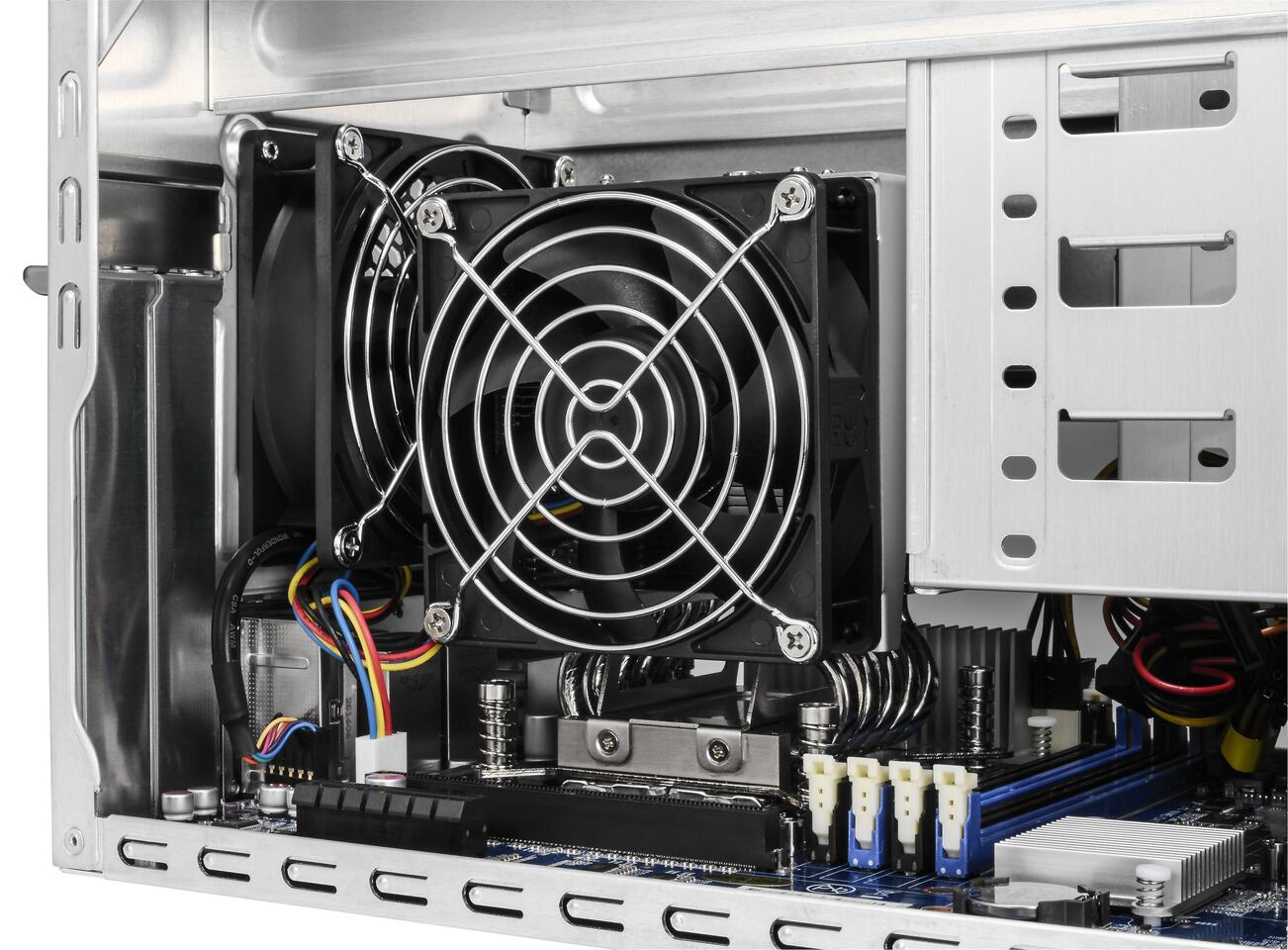

Continuous, stable operation is ensured by Shuttle’s advanced heatpipe cooling system, featuring 10 heatpipes and three temperature-controlled fans. The integrated 500-watt power supply, certified with 80 Plus Gold, delivers reliable and energy-efficient power for demanding workloads and extended use.
Conclusion
The Shuttle XPC Barebone SB860R8 stands out as a future-ready, high-performance compact desktop solution. With support for the latest Intel processors, expansive memory and storage options, and enterprise-grade connectivity, it is engineered to meet the evolving needs of professionals and enthusiasts seeking uncompromising performance in a small form factor.
